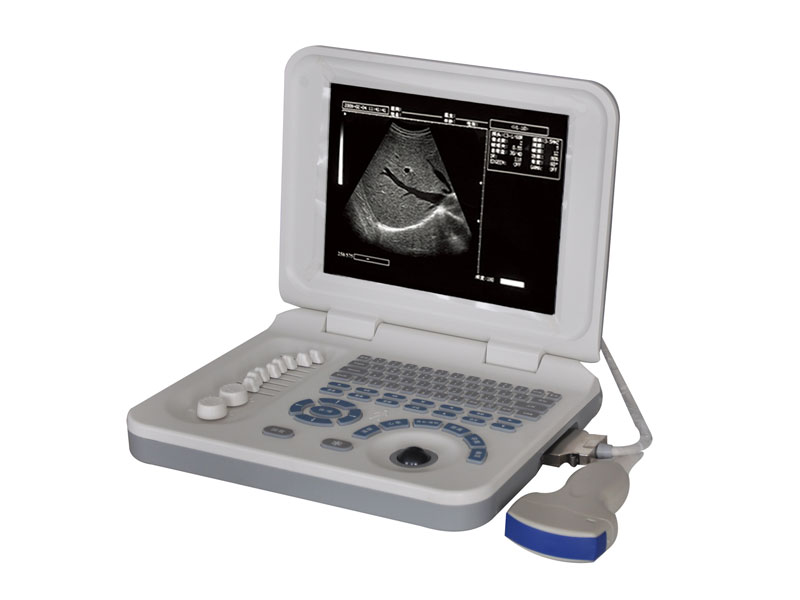

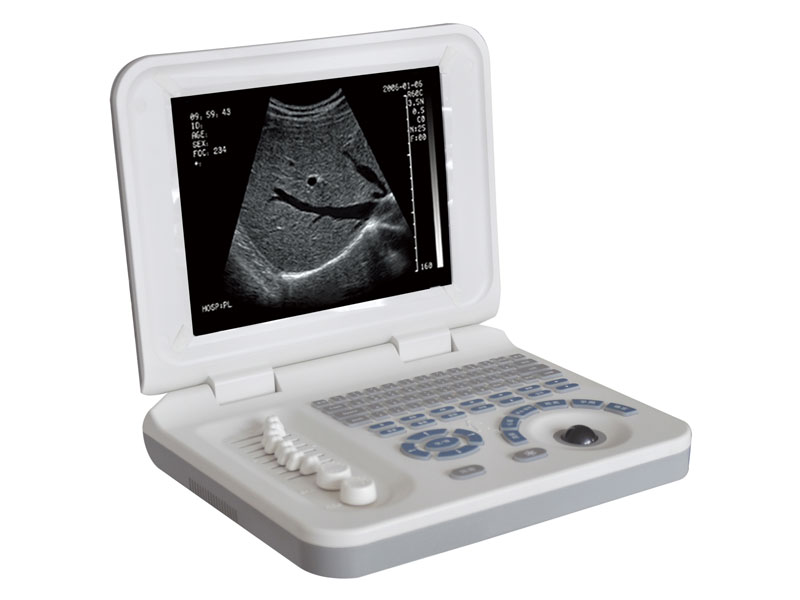

PL-3018 Full Digital Laptop Ultrasound Scanner

Technical Parameters :
Display Mode:B, B/B, 4B, B+M, M
Magnification:×0.8, ×1.0, ×1.2, ×1.5, ×1.8, ×2.0
Scanning depth:≥ 170mm
Lateral resolution:≤ 2mm (depth≤80mm), ≤ 3mm (80"depth≤130mm)
Share With:


    APPLICATION: hospitals, clinics, health care centers, universities and etc .

    Examination parts : abdominal, obstetrics, gynecology, regional nerve block, uterus / adnexa, eyeball, testicle, bladder, breast, small parts, nerve, vascular, venous access musculoskeletal and etc .


Display Mode: B, B/B, 4B, B+M, M.
Magnification: ×0.8, ×1.0, ×1.2, ×1.5, ×1.8, ×2.0.
Scanning depth: ≥ 170mm
Lateral resolution: ≤ 2mm (depth≤80mm), ≤ 3mm (80"depth≤130mm)
Longitudinal resolution: ≤ 1mm (depth≤80mm), ≤ 2mm (80"depth≤130mm)
Blind: ≤ 5mm
Geometric position accuracy: lateral ≤ 15%
Longitudinal: ≤10%
Dynamic range: 0~120dB adjustable.
Monitor: 10.4 inch high-resolution.
Grey scale: 256.
Measuring function: Distance, perimeter, area, volume, ellipse measurement, heart rate, gestational weeks (BPD, GS, CRL, FL, HL,etc), expected date of confinement and so on.
Annotation: hospital name, patient’s name, gender and age, full-screen character annotation, real-time clock display.
Body marks: 64.
Puncture guide: displayed under B mode.
Gain control: 8 segments TGC and full gain can be adjusted respectively.
Image reverse: left/right, black/white, up/down.
Cine loop: 256.
Permanent storage: 128.
Image display: continuous playback, pieces of view Video
Output: SVGA, PAL, video recorder and Image workstation etc.

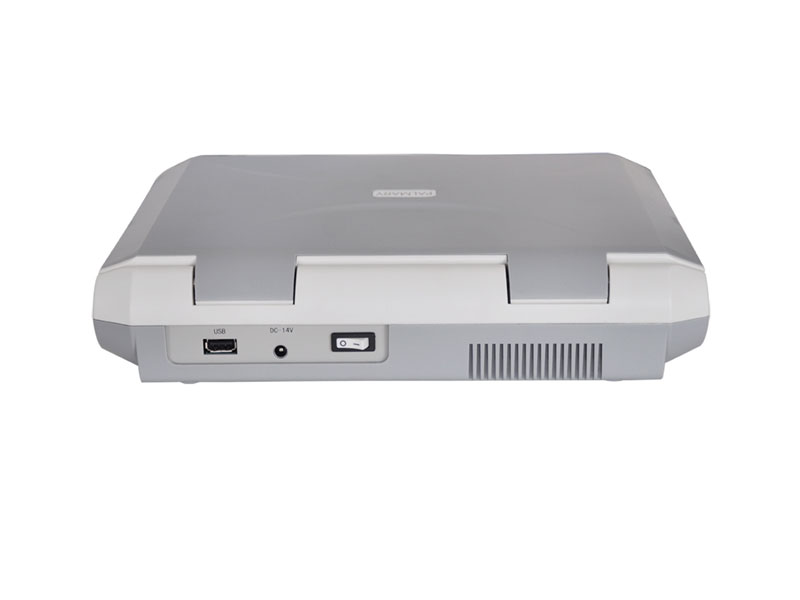

USB output
Machine size(mm): 300(L)×245(W)×60(H)
Power: AC 220V±22V 50Hz
Input power: ≤ 300VA
Continuous work hours: ≥ 8h


Standard Configuration :
Scanner Body: 1pc
3.5Mhz Convex Probe: 1pc
Charger with a set of wires: 1set
Bottle of USG gel: 1pc
Wrap Bag: 1pc
User Manual: 1pc
Transportation Case: 1pc

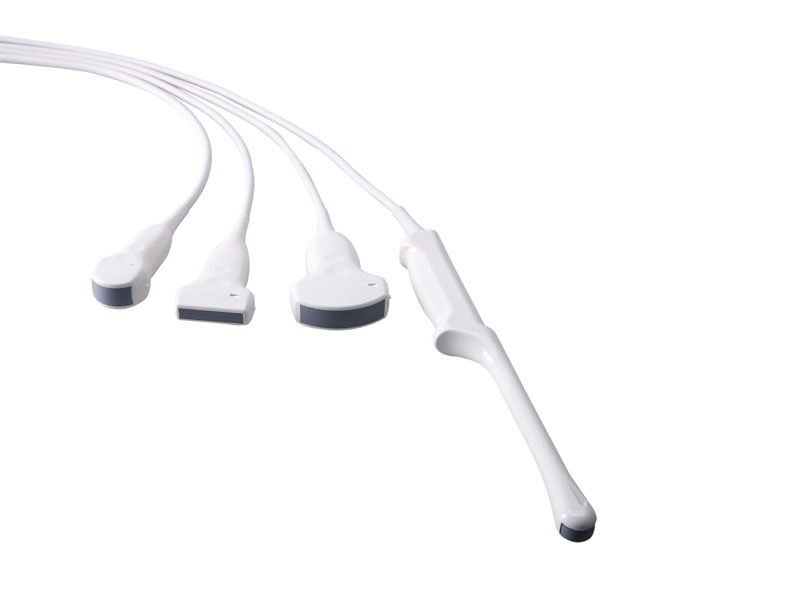

Optional :
5.0MHz Micro-convex Probe
6.5MHz Trans-vaginal Probe
7.5MHz Linear Probe
Video Printer
