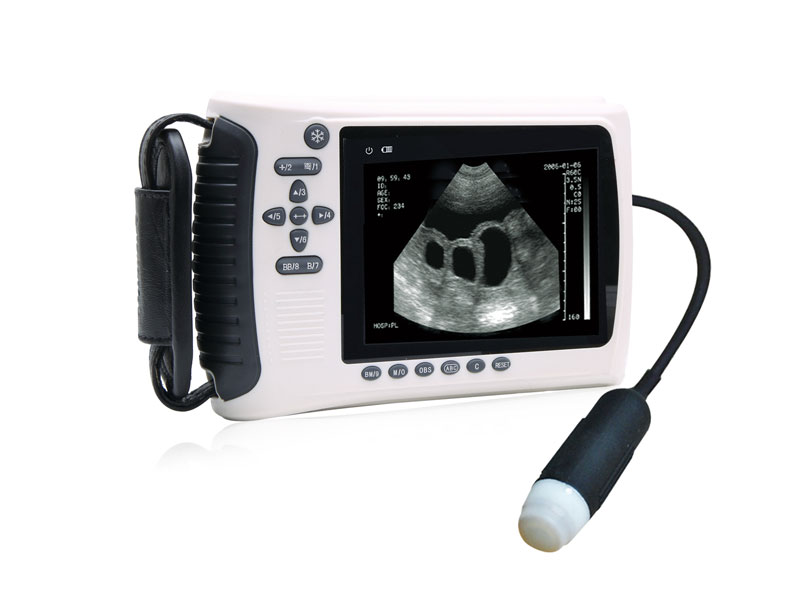

PL-2018V Veterinary Handheld Ultrasound Scanner/Machine

Hand-held design, smart and light, easy to carry, convenient for detection.
5" FTT-LED, wide visual, high brightness, high contrast, image clear and exquisite.

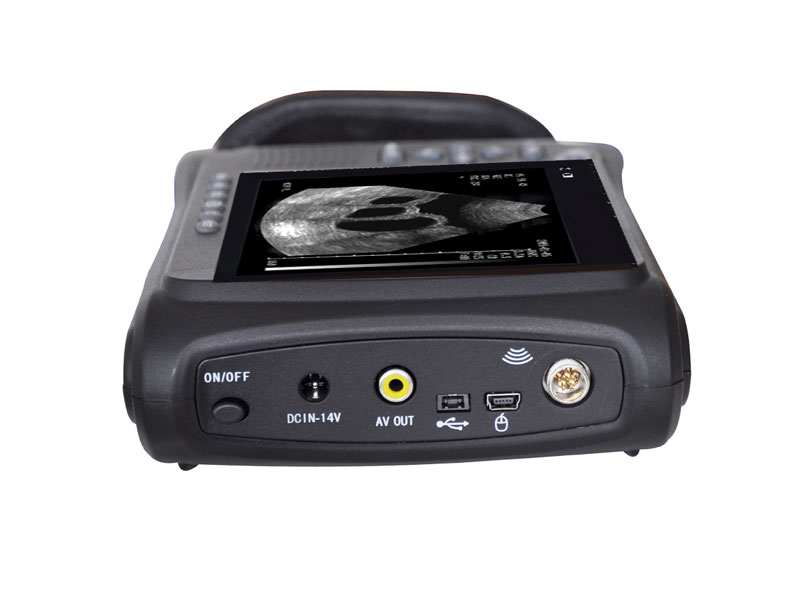

Output: USB2.0, video (PAL-D, NTSC), connecting to video recorder and ultrasonic workstation.
Easy to print out all kinds of detection images and reports.
Optional mouse to operate easier.
Adopted AC and DC to supply power, lithium battery capacity 2600mA which can make machine work more than 180 minutes.

Displayed Depth(mm): 192
Maximal detect depth(mm): ≥140
Resolution(mm): Lateral, ≤4（depth≤80）, ≤5（80＜depth≤130）; Axial, ≤2（depth≤80）
Blind zone(mm): ≤8
Geometric position precision: Horizontal≤20; Vertical≤10
Monitor size: 5.0” TFT-LCD
Display mode: B, B+B, B+M, M, 4B
Image gray scale: 256
Scan depth: 120mm-190mm
Image process: histogram, color encode, gama, image smooth
Measurement: distance, circumference, area, volume, heart rate, gestation age
Notation: date, time, name, sex, age, full screen words edit and etc.
Output: USB 2.0, VIDEO ( PALD, NTSC)
Charging method: adapter, battery
Adapter rating: 100-240V～, 50-60Hz, 70VA
Battery: 2600mAh, continuous work: ≥3 hours
Machine dimension: 230mm(L) x 120mm(W) x 38mm(H)
N.W: 800G
