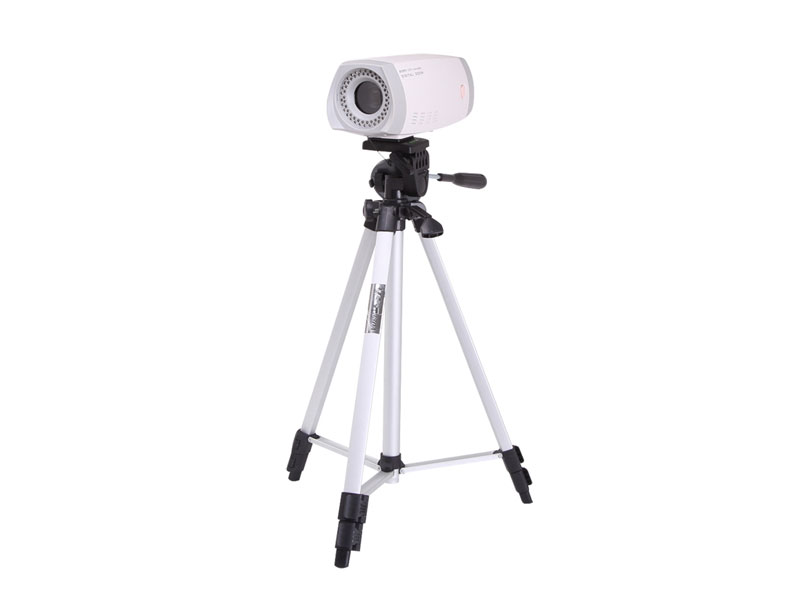

PL-9800 Portable Colposcope

Technical Parameters :
Lens resolution:1/4"super HAD color CCD,80,0000 pixel
Lens axial resolution:470 lines
Lens S/N:50dB
Lens focus distance:standard 100~400mm; support: 10~1000mm
Share With:


    APPLICATION: hospitals, clinics, health care centers, universities and etc .

    Examination range: gynecology .


Adopting the ring fiber lens;
Adopting the halogen cold light source (15V, 150W);
Adjustable brightness and a green filter;
Advanced image processing technology, can achieve the functions of marking, calculation of areas, zooming images;
With the editing functions of access images, freezing, collection, delete images, etc;
Images can be collected continuously, and display a number of images on the same screen and convenient to contrast, full-screen display;
The reports can be printed into multiple formats.


SONY color digital CCD , 800,000 pixel;
1-128 magnification image continuously variable adjustment;
White LED power with super and even brightness;
More than 60% than the traditional halogen lamp in the brightness and color temperature;
Lifetime: 100 ,000 hours;
Vivid color;
Special designed image halo filtering tech ensure clearer image;
Easy edit and maintenance of diagnostic words, easy operation;
Storage of normal clinical images for easy diagnostic contrast;
Support video-out of diagnostic report and true color image;
Super-large memory, max. 1 million cases can be stored;
Convenient check of cases and statistics;
Lens resolution: 1/4"super HAD color CCD,80,0000 pixel;
Lens axial resolution: 470 lines;
Lens S/N: 50dB;
Lens focus distance: standard 100~400mm; support: 10~1000mm;
Scan range: 2.5mm-20mm-320mm;
Depth of Field: 15mm-40mm 15mm-480mm;
Lens zoom: 1~128;
Lens fouse: AF/MF;
Lens white balance: AWB;
Lens lighter type: LED;
Lens image output interface: Video, S-video, PAL;
Lens lighter type : LED ring , phosphorus gallium arsenide high brightness , longevity light source group (average life 100,000 hours);
Lens video-output: PAL, VBS-standard 1.0Vp-p;
Power Requirements: AC220V ±10%;
Power Rating : 500W;
Brightness adjustment: Automatic electronic shutter;
Ambient temperature: -40°C to +50°C;
Storage temperature : -20°C to +60°C;
Relative Humidity: 30~80%RH.

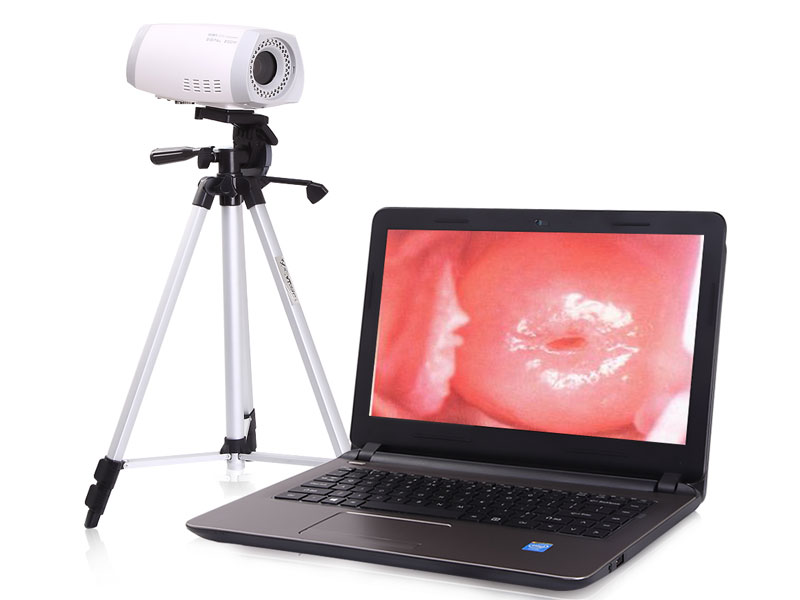

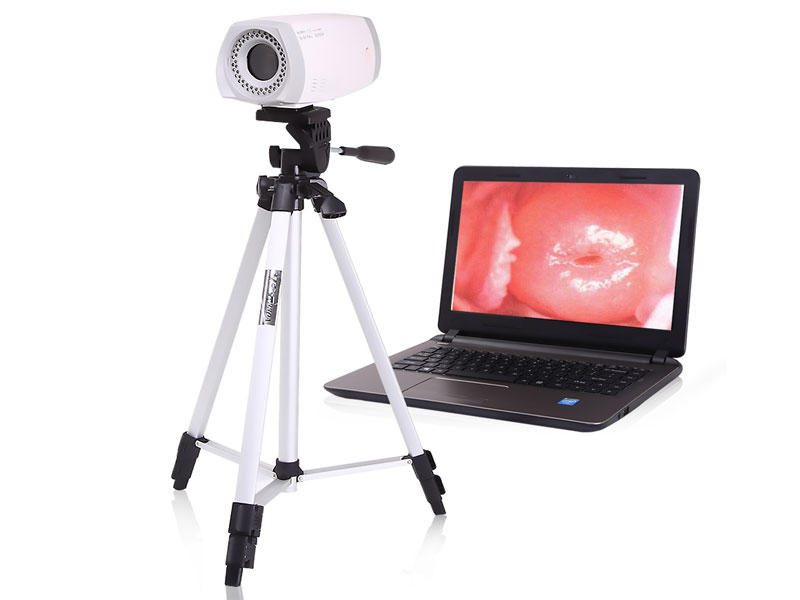

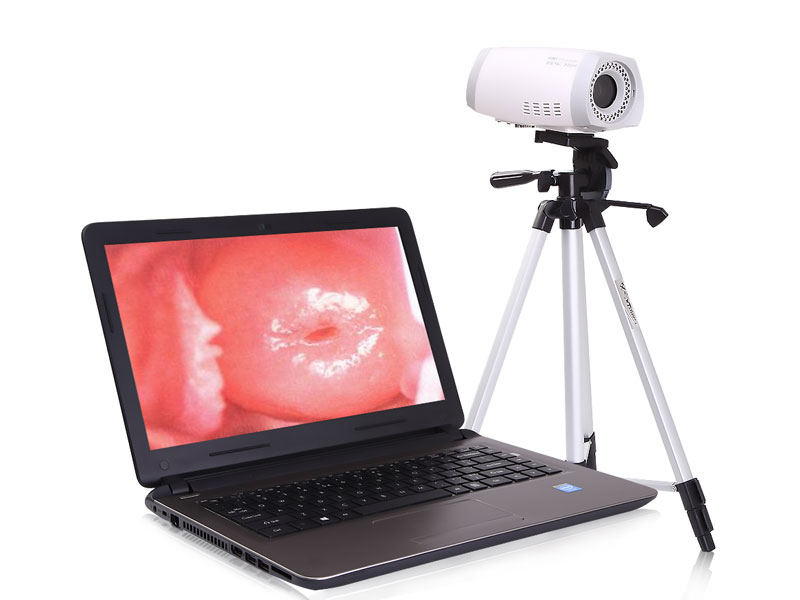

Supporting system :


SONY Colposcope: 1pc

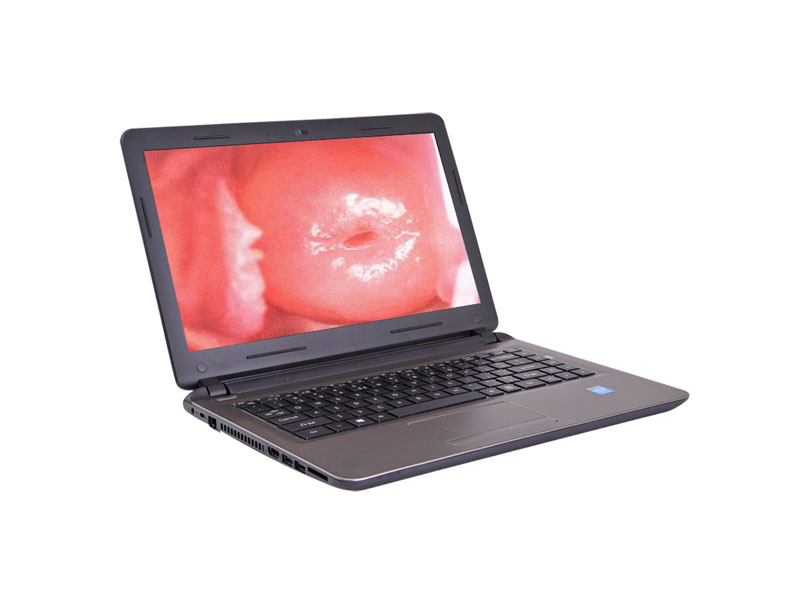

Laptop computer: 1pc
Capture box: 1pc
Tripod: 1pc
Software: 1pc
