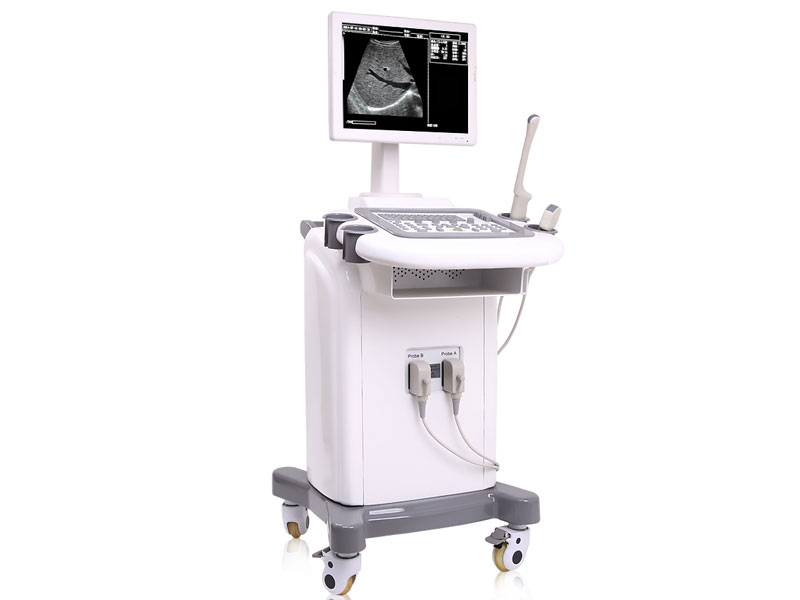

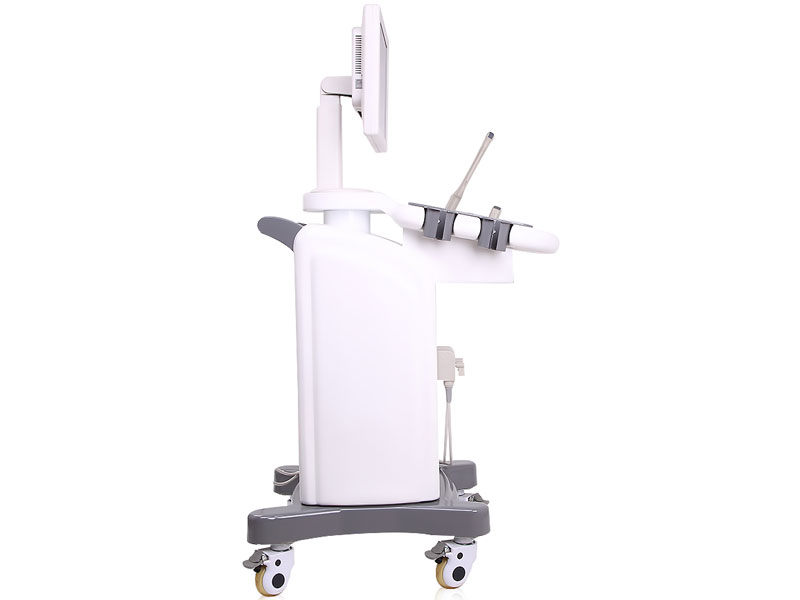

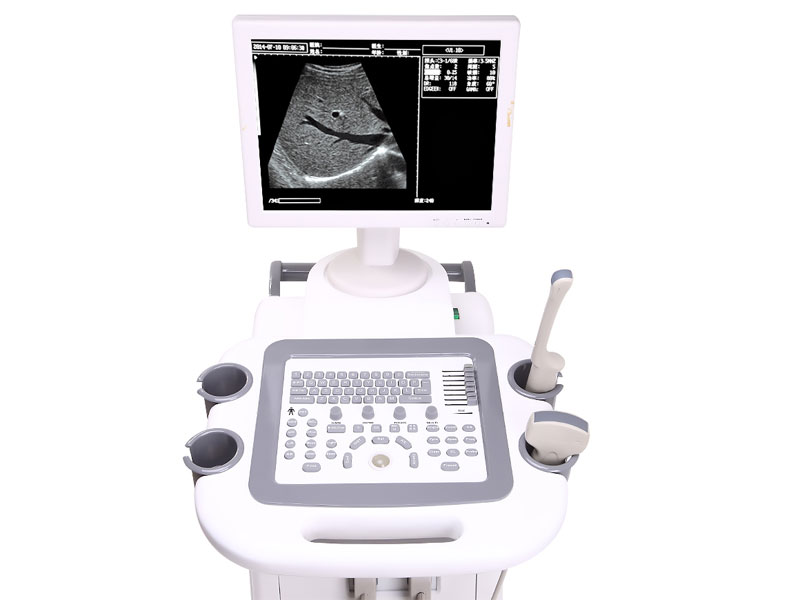

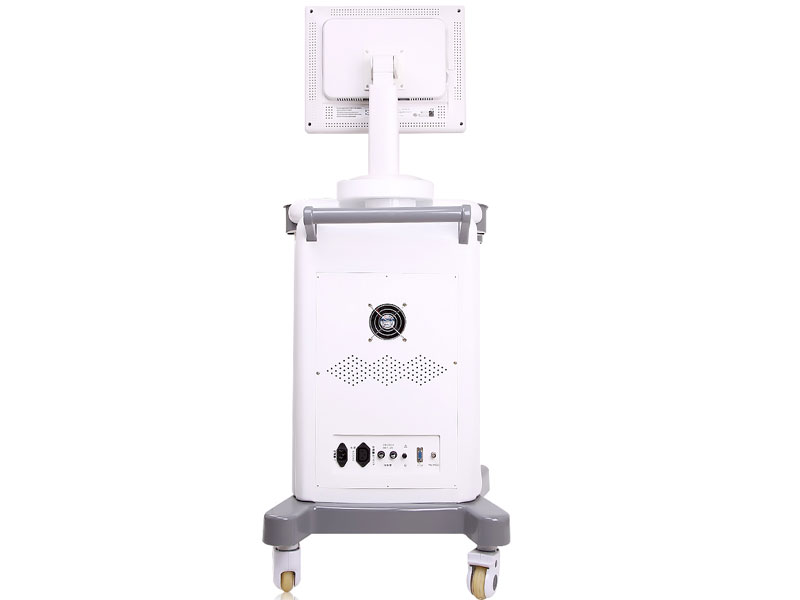

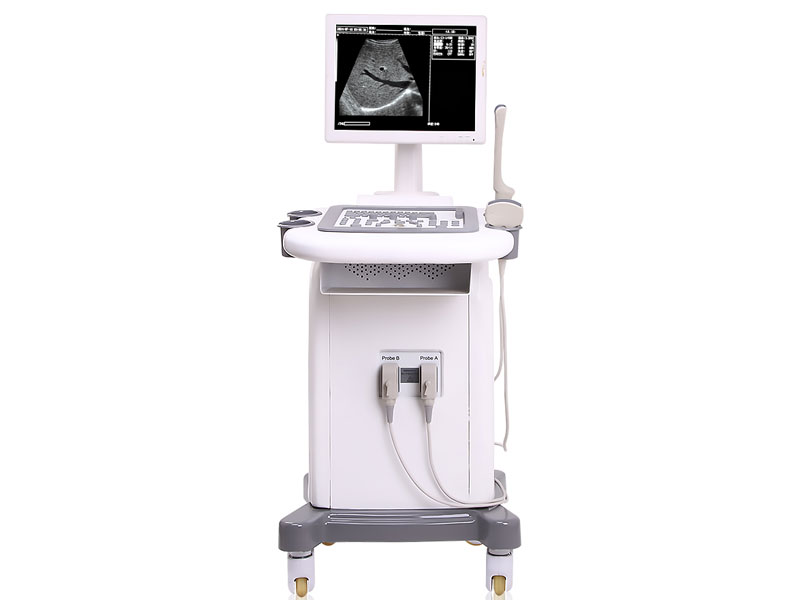

PL-3018II Full Digital Trolley Ultrasound Scanner

Technical Parameters :
Display depth (mm):240 (max),16 levels adjustable
Monitor size:14 inch
Display mode:B、B+B、B+M、M、4B
Image gray scale:256 level
Share With:


    APPLICATION: hospitals, clinics, health care centers, universities and etc .

    Examination parts : abdominal, obstetrics, gynecology, regional nerve block, uterus / adnexa, eyeball, testicle, bladder, breast, small parts, nerve, vascular, venous access musculoskeletal and etc .


The system uses micro computer technology, Digital Scanning Converter (DSC), variable aperture,
multi-section dynamic focusing, high dynamic, low noise, wide band pre-amplifier, log compression, and TGC control, dynamic filtering, edge enhancement and frame correlation.
Those embedded components allow a clear, stable and high resolution image.
Power Supply: 100V~130V/220V~240V, 50/60Hz.


Probe Standard Optional
  3.5MHz convex probe 7.5MHz linear probe 6.5MHz trans-vaginal probe
Probe frequency 2.5Mhz,3.5Mhz, 5.0Mhz 6.5Mhz,7.5Mhz,8.5Mhz 5.5Mhz,6.5Mhz, 7.5Mhz
Display depth (mm) 240 (max),16 levels adjustable
Max detect depth (mm) ≥160 ≥80 ≥60
Resolution (mm) Lateral ≤2 (depth≤80)
≤3 (80<depth≤130)
  Axial ≤2 (depth≤80)
≤3 (80<depth≤130)
Blind zone(mm) ≤5 ≤3 ≤7
Geometric position precision Horizontal ≤15 ≤5 ≤10
  Vertical ≤10 ≤5 ≤5
Monitor size 14 inch
Display mode B、B+B、B+M、M、4B
Image gray scale 256 level
Cine loop 809 frame (Max)
Image storage 32 frames
Scan angle Adjustable
Scan depth 40mm-240mm
Acoustic power 2 steps
Dynamic range 100dB-130dB
Image flip Up/down, left/right, black/white
Focus position Adjustable
Focal space 5 level
Measurement Distance, circumference, area, volume, heart rate, GA,FW,EDD and etc.
Notation Date, time, name. sex, age, doctor, hospital name.Full screen words edit.
Output report 2 types
Posture mark ≥40
Video output PAL-D, VGA
Machine dimension 51*68*124 (cm)


Standard Configuration:
Scanner Body:1pc
3.5Mhz Convex Probe: 1pc
Charger with a Set of wires: 1set
Bottle of USG gel: 1pc
User Manual: 1pc

7.5Mhz Linear Probe
6.5Mhz Trans-vaginal Probe
5.0Mhz Micro-convex Probe
Thermal Video Printer
