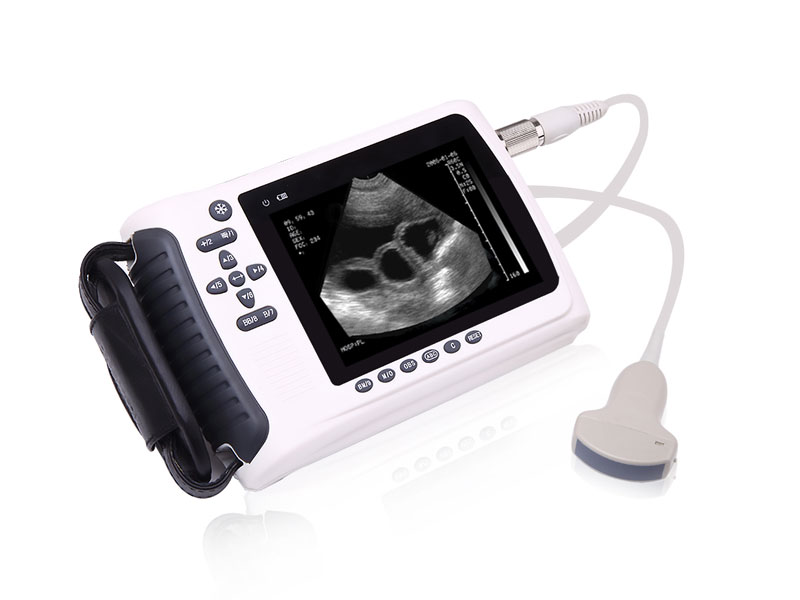

PL-3018V Full Digital Veterinary Ultrasound Scanner/Machine

Technical Parameters :
Detect Depth(mm):≥140
Blind zone(mm):≤3
Monitor size:5 inch
Display mode:B, B+B, B+M, M, 4B
Share With:

Application

    Mainly Application : swine , ovine , goat , bovine , equine , camel , alpaca , dog , cat , rabbit and etc .

Feature

5" FTT-LED, wide visual, high brightness, high contrast, image clear and exquisite.

Hand-held design, smart and light, easy to carry, convenient for detection.

OB measurement: EDD and GA for Bovine, equine, swine, alpaca, ovine, goat, canine, feline, rabbit.

128 frames permanent storage, 256 frames cine loop.

Output: USB2.0, video (PAL-D, NTSC), connecting to video recorder and ultrasonic workstation.

Easy to print out all kinds of detection images and reports.

Optional mouse to operate easier.

Adopted AC and DC to supply power, lithium battery capacity 2600mA which can make machine work more than 180 minutes.

Parameters

Detect Depth(mm): ≥140
Blind zone(mm): ≤3
Monitor size: 5 inch
Display mode: B, B+B, B+M, M, 4B
Image gray scale: 256
Image storage: 128
Cine loop: ≥400 frame
Scan depth: 120mm-220mm
Image flip: up/down, left/right
Focus position: Adjustable
Posture mark: 15
Image process: Histogram, color encode, gama, image smooth
Probe frequency: Adjustable ( 3 point each probe )
Frame correction: Adjustable
Measurement: distance, circumference, heart rate, EDD, area, volume, GA and etc.
Notation: date, time, name, sex, age, full screen words edit and etc.
Output report: regular

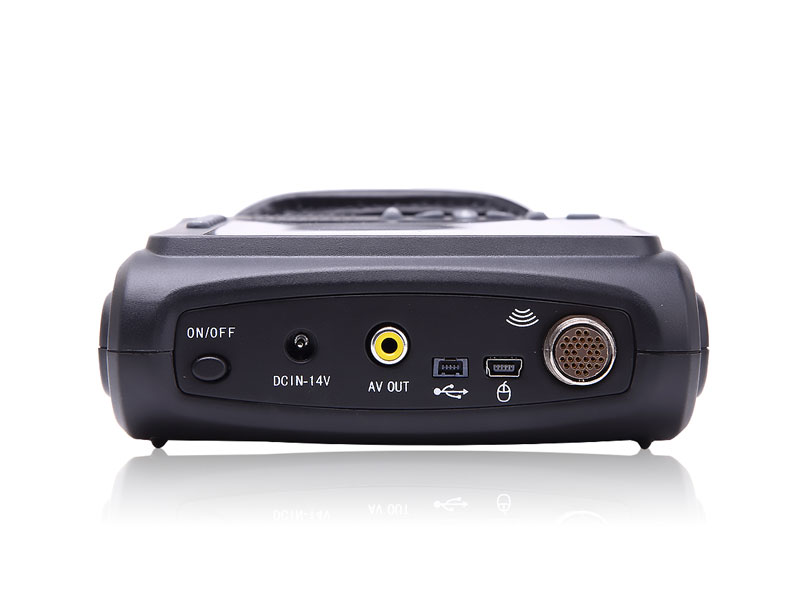

Output: USB2.0, VIDEO( PALD, NTSC)
Charging method: adapter, battery
Adapter rating: 100-240V~, 50-60Hz, 70VA
Battery: 2600mAh, continuous work: ≥3 hours
Machine dimension: 230mm(L)x120mm(W)x38mm(H)
Net weight: 700g

Configuration

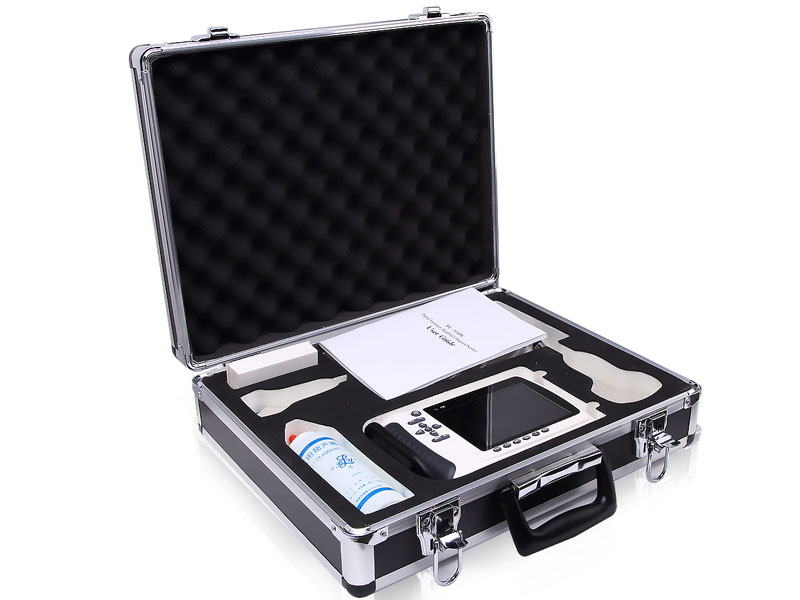

Standard Configuration :
Scanner Body: 1pc
Li-ion Battery: 1pc
3.5MHz Convex Probe: 1pc
Charger with a Set of Wires: 1set
Wrap Bag: 1pc
CD: 1pc
Bottle of USG gel: 1pc
Transportation Case: 1pc
User Manual: 1pc

Optional :
5.0MHz Micro-convex Probe
6.5MHz Rectal Probe
6.5Mhz Rectal Probe with Rod
7.5MHz Linear Probe
Video Printer
Li-ion Battery
Rod of Rectal Probe
Car Charger
Charging Adaptation Wire(containing power cord)
